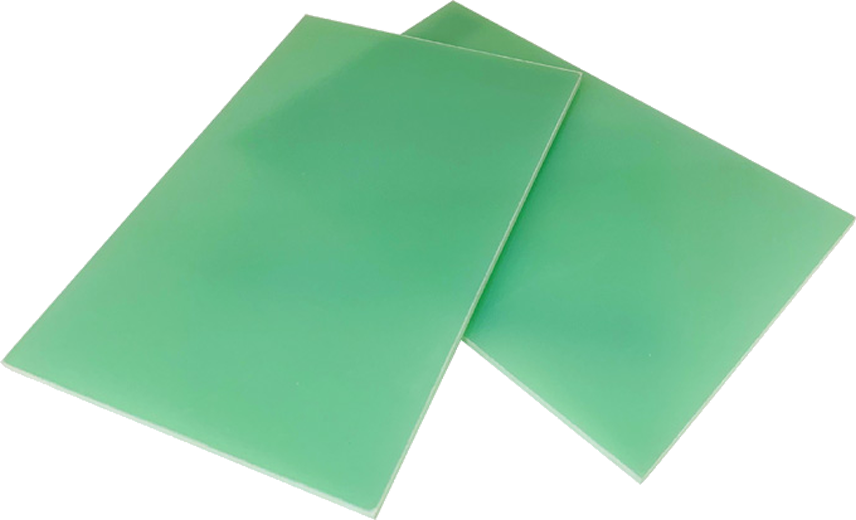

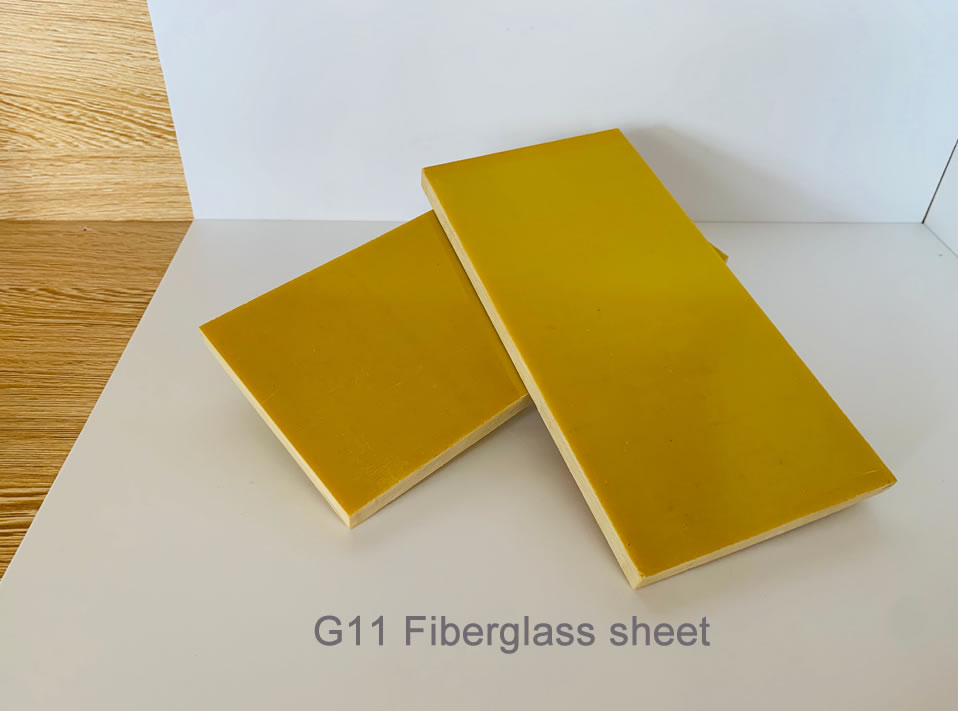

G11 Epoxy Fiberglass Sheet is NEMA G11 High Temperature Epoxy Resin Fiberglass Board(EPGC 203/NEMA G-11/HGW2372.4/EP3)
G11 Epoxy Fiberglass Sheet is created by compressing fiberglass cloth, soaked in high temperature resistant epoxy resin under heat with excellent mechanical and dielectric properties, good mechanical performance at high temperature and high humidity condition, and good processability.
G11 Sheet Advantages:
1.G11 material excels in moisture resistance and heat resistance.
2.It maintains strong mechanical properties even at high temperatures.
3.It exhibits excellent electrical performance in both dry and wet conditions.
G11 Sheet Application：
| Slot Wedges | Machine parts | Transformer baffles |
| Terminal Boards and Tag Strips | Bolt Insulation | Electromechanical Components |
| High-Voltage Switches | FPC Reinforcing Sheets | Wiring Boards |
| Planetary Gears | Electronic Insulation Fields | Power Distribution Cabinets |

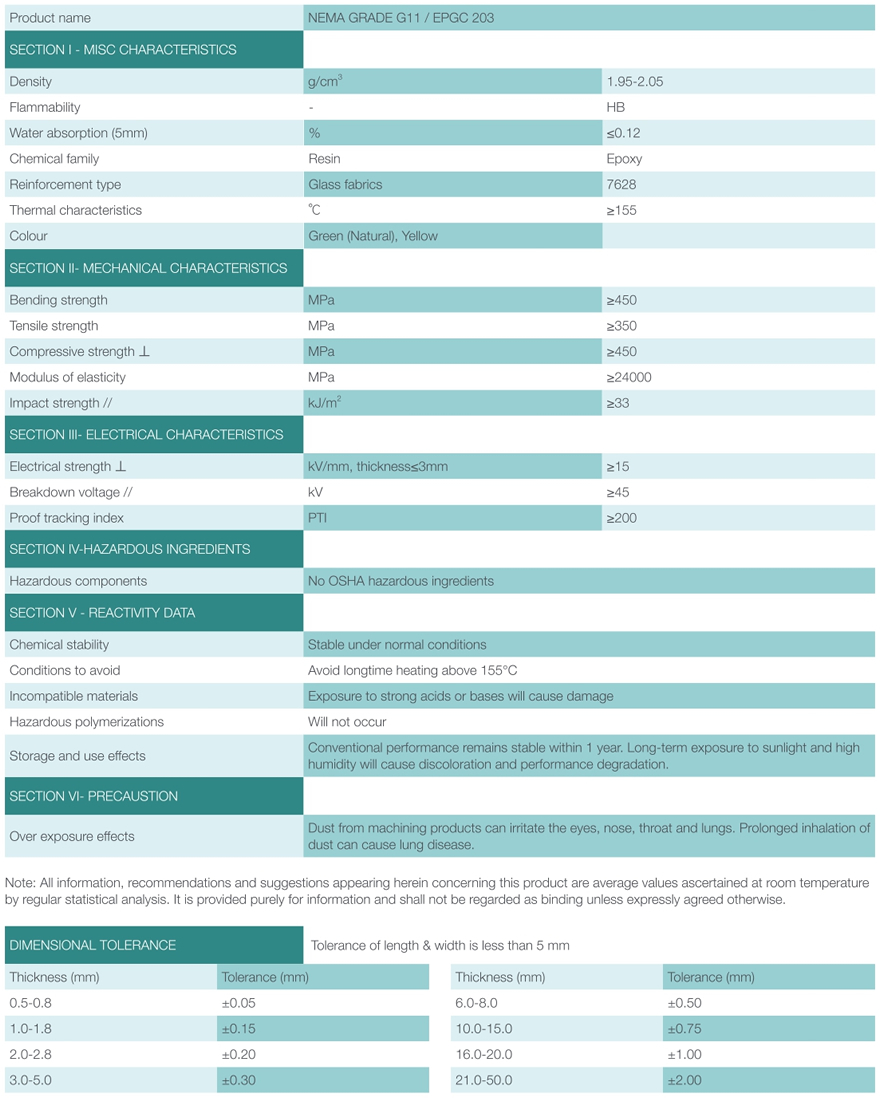

Epoxy Resin Fiberglass Sheet Parameter：

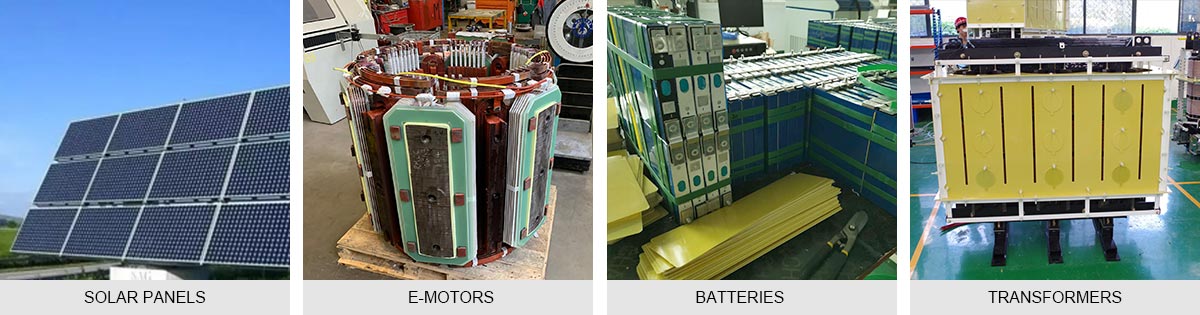

G11 Sheet Application
G11 High Temperature Epoxy Resin Fiberglass sheet can be used as insulating structural parts with heat resistance for electrical equipments such as circuit breakers, switch gear, transformers, DC motors, AC contactors, explosion-proof electrical appliances, electric furnace, electric melting furnace, etc.
It can also be used for making structural support parts of switch and transformer, bus clamp plate, signal plate, partitions and lining plates of various switch gears, terminal plate, interphase insulation, bottom baffle, contact support parts, movable cover, slot wedge stator, fixed gasket, thin gasket, carbon brush, etc.
Why Choose ZTelec Group’s G11 epoxy sheet
1、 Automatic Coating: Glue evenly, strictly control PP sheet move.
2、 Fully automatic special equipment: Without one machine multi-purpose, which can guarantee product quality stability.
3、 Quality testing: Strict factory inspection, total quality management TQM
4、 Processing Service: According to your requirements, we process and customize on time and quality
5、UL,SGS and ROSH certificates are complete, and sample testing can be provided

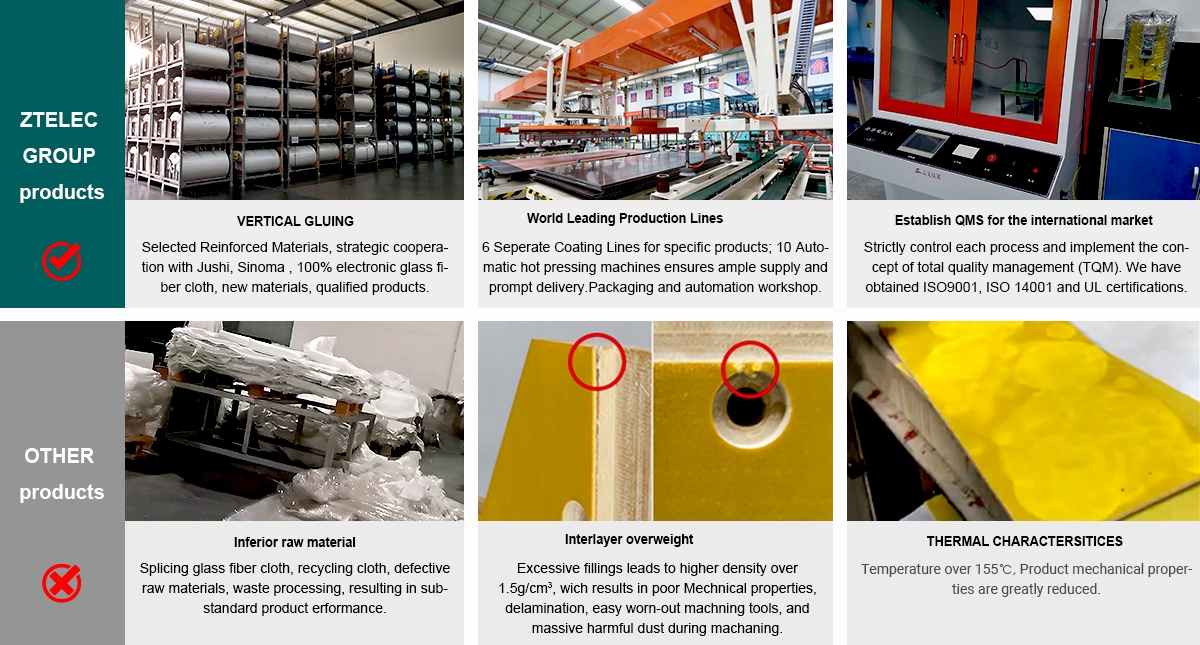

ZTelec Group’s Nema G11 Sheet VS Other manufacture’s G11 Sheet
