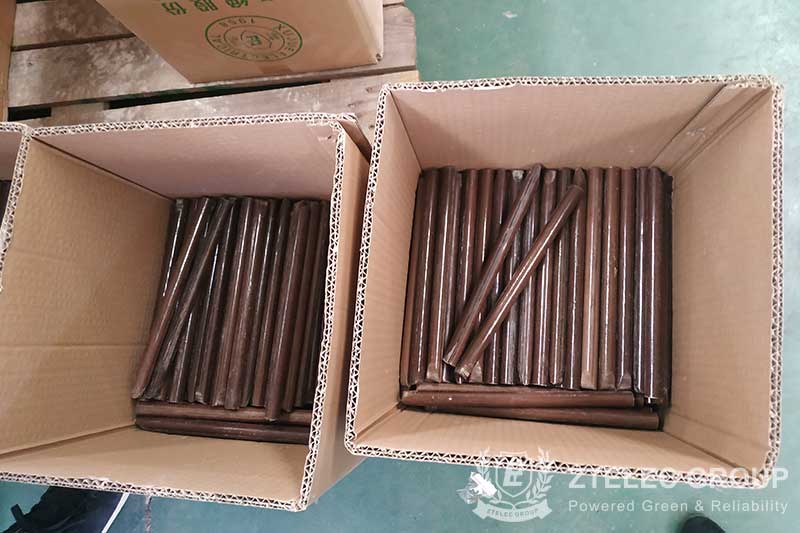

Description of Diphenyl Ether Fiberglass Cloth Laminated Rod
Application of Diphenyl Ether Fiberglass Cloth Laminated Rod
Apply to as insulating structural spares, screw processing parts in motors and electrical equipments.
Advantage of Diphenyl Ether Fiberglass Cloth Laminated Rod
Diphenyl ether fiberglass cloth laminated rod, produced by ZTelec Group using diphenyl ether as raw materials, can be mass-produced with advanced production equipment and automatic production line. This product has the advantages of reliable quality, smooth appearance, uniform color, neat cutting ends and small thickness tolerance with strict manufacturing technology. The mechanical and electrical properties of products are superior to the similar one of other companies. Its quality is recognized by domestic and foreign large enterprises such as Lens Technology in China and Schneider Electric and sold overseas such as European and American areas.
Property Parameter of Diphenyl Ether Fiberglass Cloth Laminated Rod
Executive Standard: GB-T 5132.1-2009 IEC61212-1:2006
| Number | Item | Unit | Value |
| 1 | Density | g/cm3 | 1.7-1.8 |
| 2 |
Flexural Strength at Perpendicular Lamination （Under Normal） |
MPa | ≥220 |
| 3 | Axial Compressive Strength | MPa | ≥175 |
| 4 |
Breakdown Voltage at Parallel Lamination （Transformer Oil at 90℃） |
Kv | ≥40 |
| 5 | Insulation Resistance after Immersion | MΩ | ≥1000 |
| 6 | Dielectric Loss Factor（50Hz） | – | ≤0.03 |
| 7 | Water Absorption | Mg/cm2 | ≤5 |
| 8 | Thermal Index | – | 180 |
