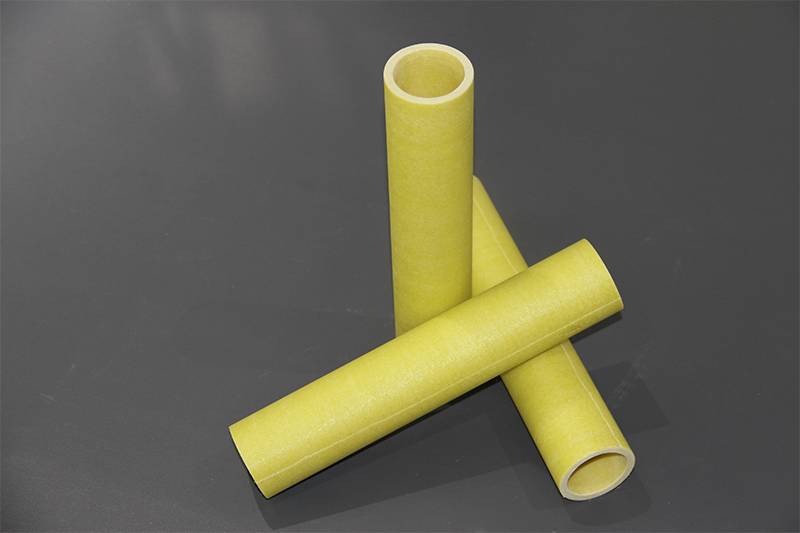

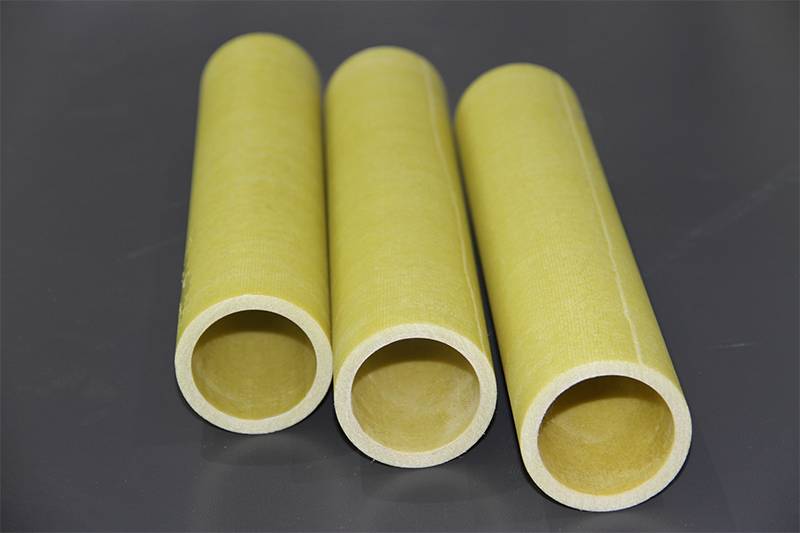

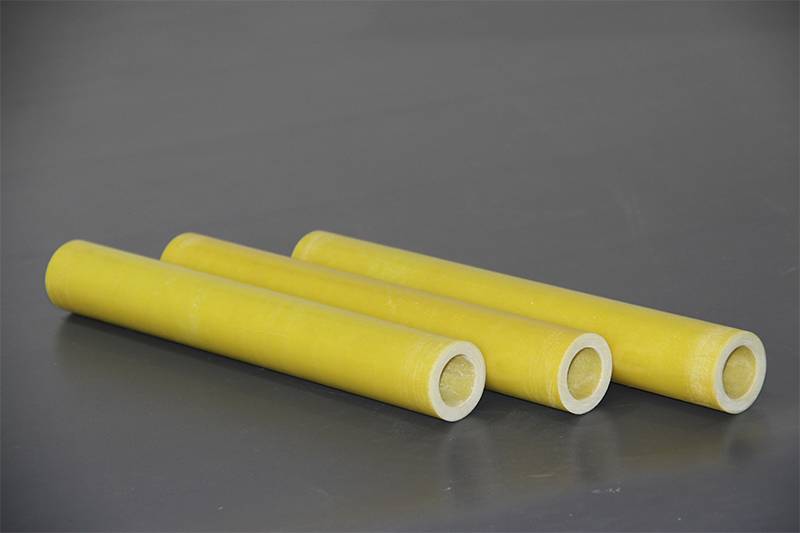

Product introduction
The Insulation epoxy glass cloth tube is made of an electric non-alkali glass fiber cloth impregnated with epoxy resin which is processed by hot pressing in baking and forming mold. Insulation epoxy glass cloth tube has high mechanical properties, dielectric properties and good machinability. It is suitable for insulation structural parts in electrical equipment and can be used in humid environment and transformer oil.
Insulation epoxy glass cloth tube parameter:
numberIndex nameunitIndex value
1Density: inner diameter6-13mm
Inner diameter>13-200mmg/cm³≥1.65
≥1.70
2Compression strengthMpa≥138
3Vertical laminar electrical strength
Wall thickness1.5mm
>1.5-3mm
>3-6mm
>6-13mmMV/m≥14
≥10
≥8
≥6
4Hygroscopic property%Table 2
5Shear strengthMpa≥14.7
Wall thickness(mm)1.5>1.5-2>2-3>3-5>5-6
Hygroscopic property(%)≦1.0≦0.8≦0.7≦0.6≦0.5
Insulation epoxy glass cloth tube application:
Insulation epoxy glass cloth tube are suitable for high-voltage electrical appliances such as electrolytic aluminum plants, steel plants, high temperature metallurgy equipment, UHV electrical equipment, aerospace, transformers, capacitors, reactors, high voltage switches, etc.
Insulation epoxy glass cloth tube characters:
1. Insulation epoxy glass cloth tube are various forms, and their materials can be adjusted according to the requirements of various applications. There are various resins, curing agents and modifier systems.
2. Insulation epoxy glass cloth tube are easy to cure. Various curing agents can be used in the production. The curing properties of the insulation epoxy glass cloth tube can be cured in a wide temperature range.
3. The adhesion of the insulation epoxy glass cloth tube is also relatively strong, so it is very convenient to install them in electrical appliances.
Insulation epoxy glass cloth tube packing and delivery:
Packing details: packed in cartons for insulation epoxy glass cloth tube
Port: Qingdao, Shanghai, Tianjin
Lead time: shipped in 15 days after payment

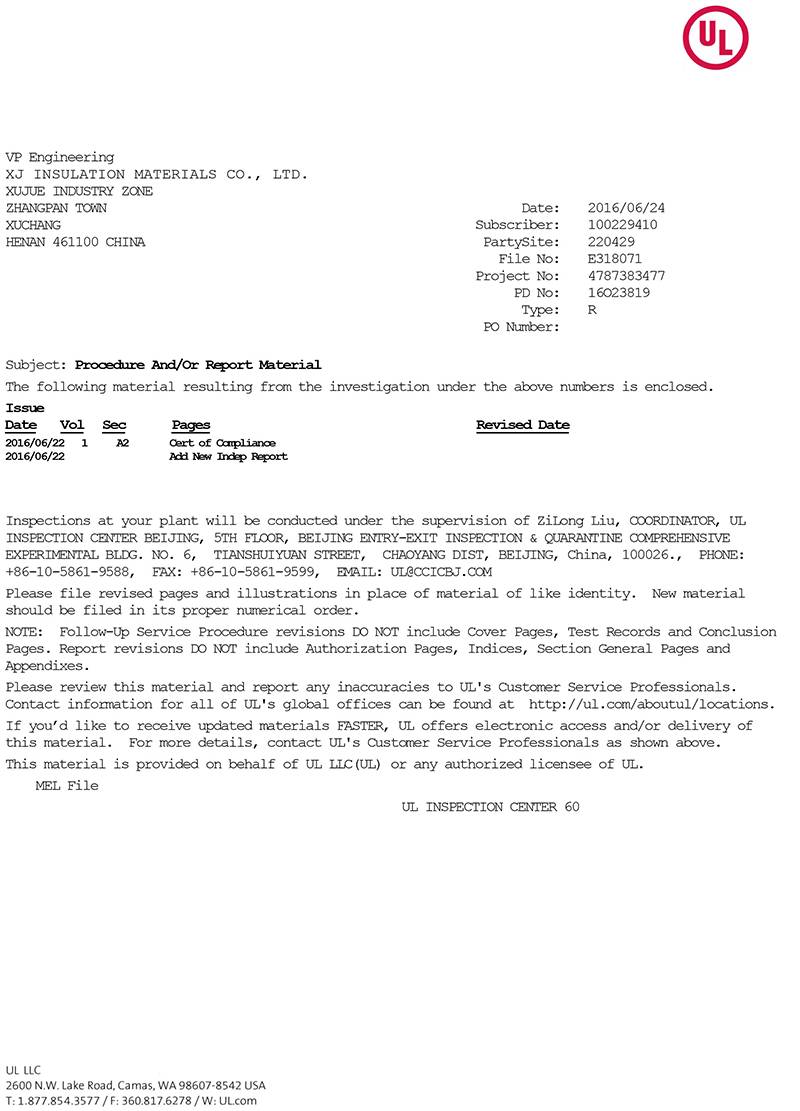

Insulation epoxy glass cloth tube certificate:
Insulation epoxy glass cloth tube of ZTELEC GROUPS base on China, facing to the world. We are willing to serve the majority of Chinese and foreign customers with advanced equipment, technology and best price.
