Epoxy fiberglass sheet

FR4 Epoxy Fiberglass Sheet

NEMA FR4/EPGC 202/HGW2372.1/EP2 Flame Retardant Epoxy Fiberglass Board Color: Green/Water Green/White/Yellow Thickness: 0.1-100mm Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 mm(support customize) Heat resistance rating: Class B (130° C) Free

product details:

Product Introduction

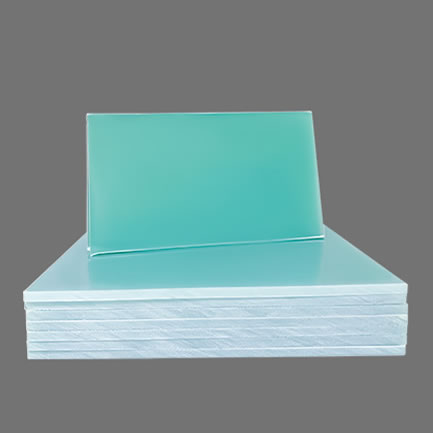

FR4 Epoxy Fiberglass Sheet   (EPGC 202/NEMA FR4/HGW2372.1/EP3)  is High Temperature Epoxy Resin Fiberglass Board

FR4 Epoxy Fiberglass Sheet is also called FR-4 flame retardant epoxy fiberglass sheet ,It is a laminated product made of electronic grade glass fiber cloth impregnated with epoxy resin and flame retardant and pressed under high temperature and high pressure.

FR4 Epoxy Fiberglass Sheet has excellent mechanical properties, dielectric properties, and thermal stability. It is suitable for insulating structural parts of electrical equipment, electronic equipment, and mechanical processing.

Product Features

■ The main color: yellow, green, black.

■ Flame Resistance:UL 94-V0

■ Supply halogen-free FR4 sheet

 Specific gravity/density: 1.850 g/cm³

 Dielectric breakdown:≥35KV

■ Flexural strength: LW > 415 MPa, CW > 345 MPa

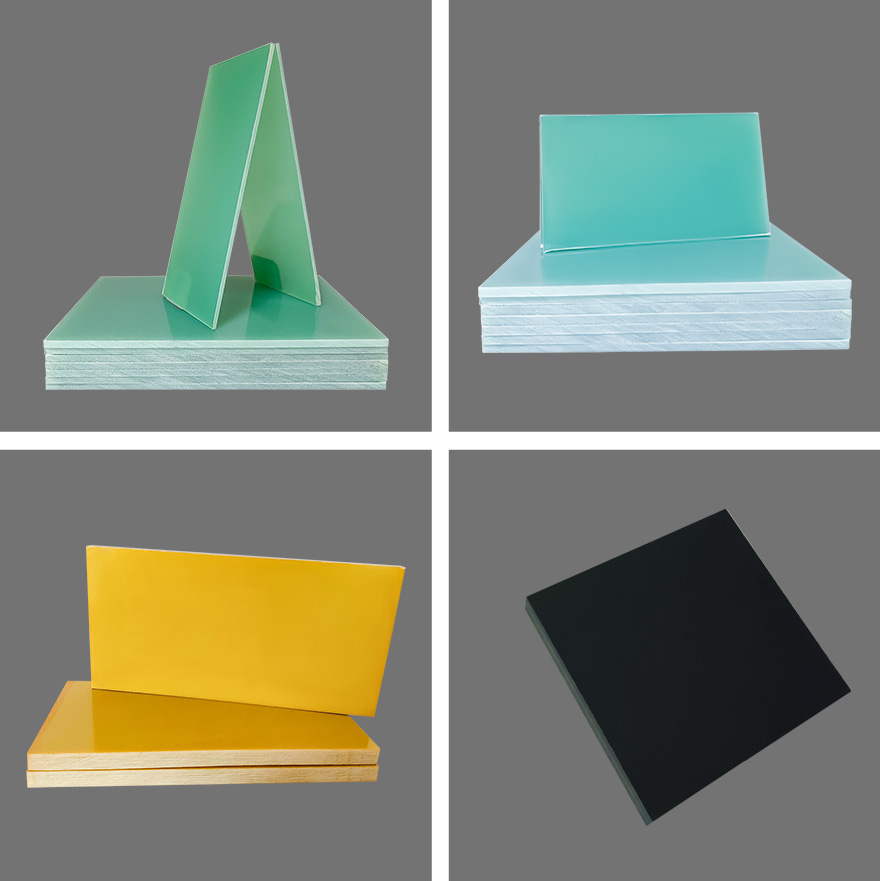

FR4 Epoxy Fiberglass  Sheet Different Color Pictures

Product specifications (length, width, thickness, etc.) and uses can be customized on demand

FR4 fiberglass sheet

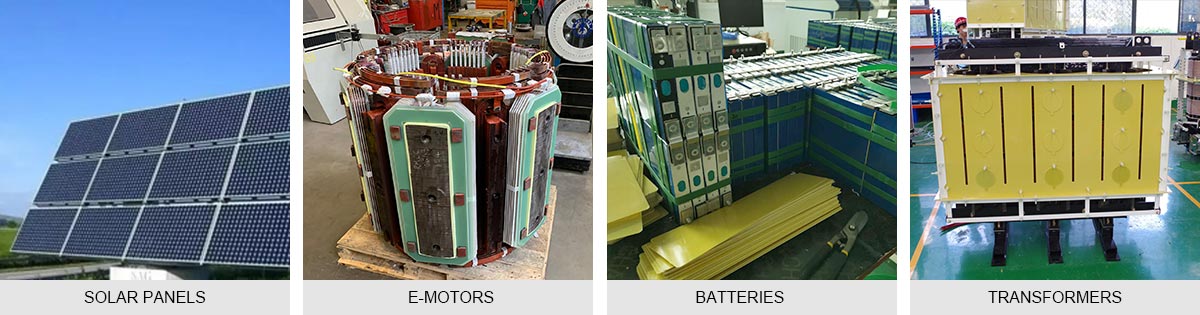

FR4 Epoxy Fiberglass Sheet Application

It can be used as insulating structural parts with heat resistance for electrical equipments such as circuit breakers, switchgear, transformers, DC motors, AC contactors, explosion-proof electrical appliances, electric furnace, electric melting furnace, etc.

It can also be used for making structural support parts of switch and transformer, bus clamp plate, signal plate, partitions and lining plates of various switch gears, terminal plate, interphase insulation, bottom baffle, contact support parts, movable cover, slot wedge stator, fixed gasket, thin gasket, carbon brush, etc.

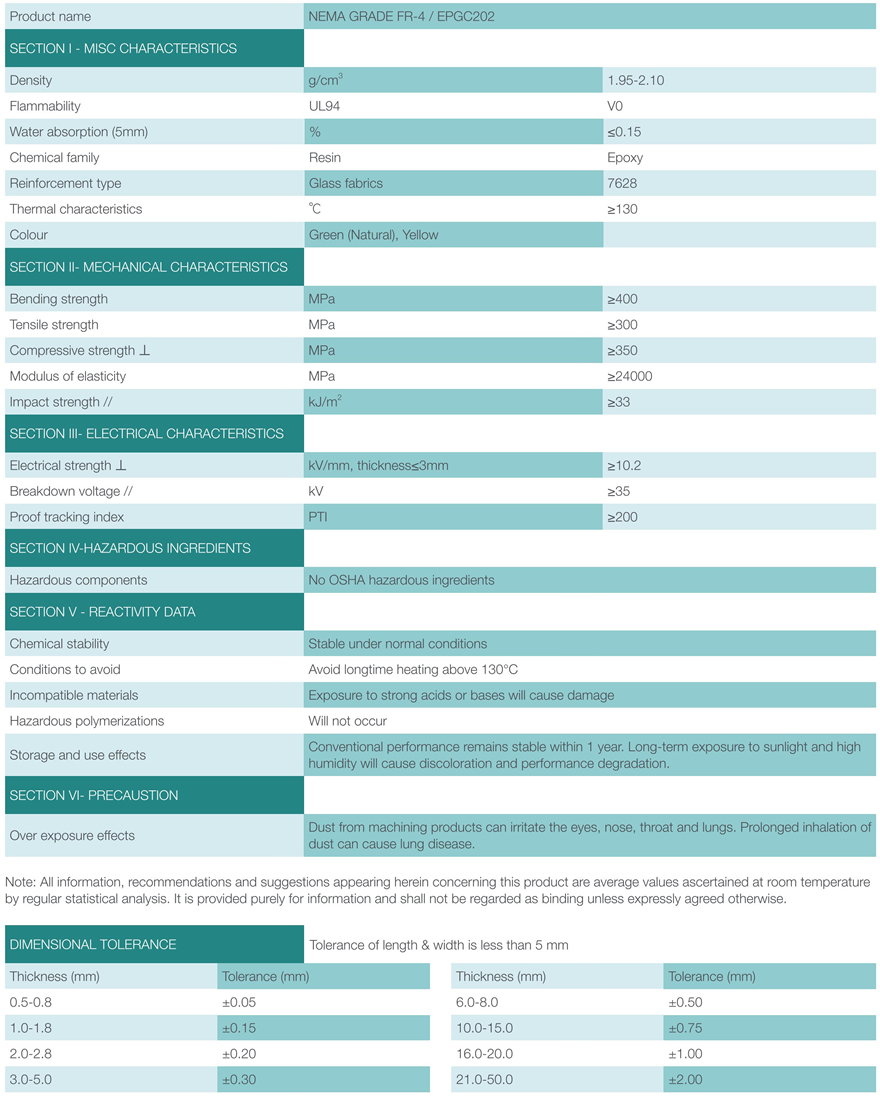

FR4 Epoxy Fiberglass Sheet Parameter:

fr4 fiberglass sheet data sheet

Our Certificates

We are steadily growing upinto aleading enterpriseof electrical equipment with an international brand in China.We are IS09001,IS014001 ,RoHS ,MSDS,CEMT ,UL and 0HSAS18000 Certified.With 65 years’experience,a sound quality control system and the consummate after-sales service,we win a high reputation both at home and abroad.

SGS and iso

Why Choose ZTelec Group’s  FR4 Epoxy Fiberglass Cloth Laminated Board

1、 Automatic Coating: Glue evenly, strictly control PP sheet move.

2、 Fully automatic special equipment: Without one machine multi-purpose, which can guarantee product quality stability.

3、 Quality testing: Strict factory inspection, total quality management TQM

4、 Processing Service: According to your requirements, we process and customize on time and quality

5、UL,SGS and ROSH certificates are complete, and sample testing can be provided

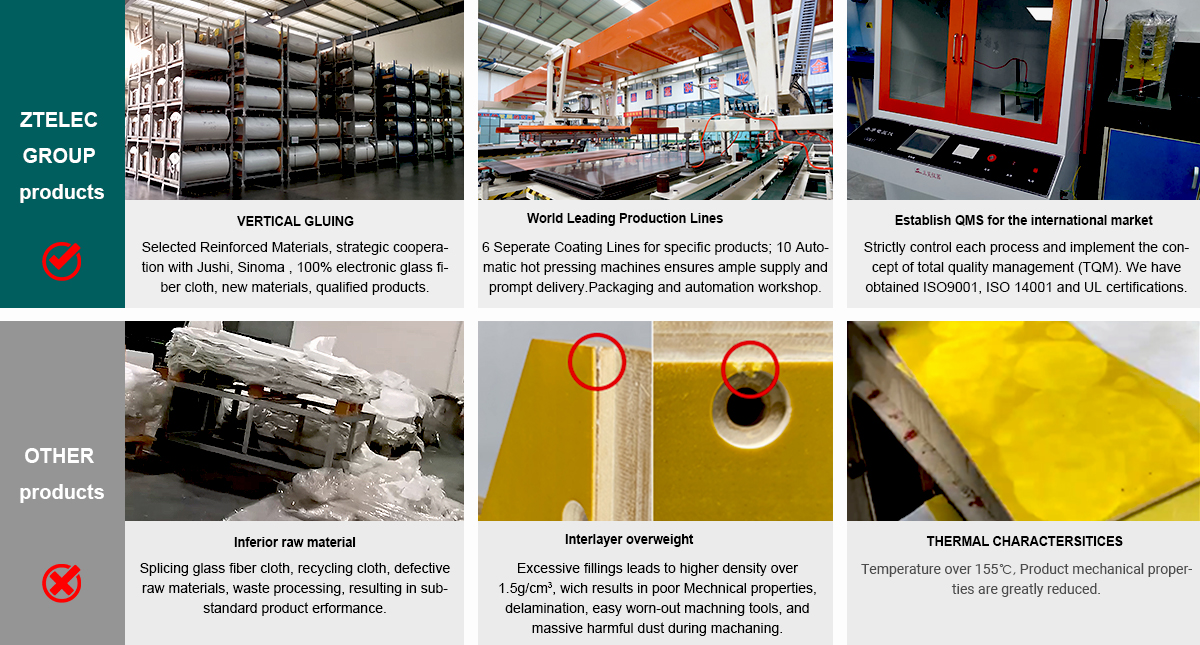

ZTelec Group’s Nema FR4 Sheet VS Other manufacture’s FR4 Sheet

leave message to us!

If you are interested in our products, please feel free to contact us!or send email to us!Email address: sales@ztelecgroup.com
