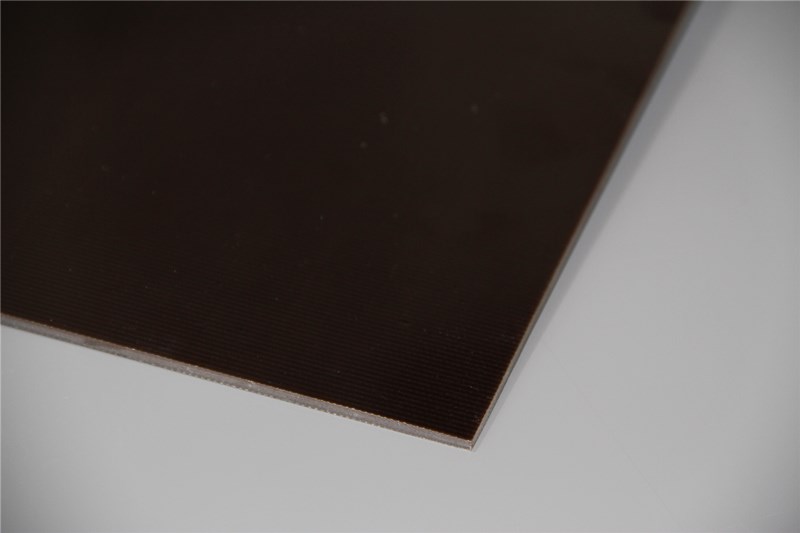

The product is a sheet-like laminate product made by electrician’s alkali-free glass cloth dipped into epoxy phenolic anti-corona glue, baked, and hot pressed.
The product has semi-conductive properties. And it has high mechanical and semiconductor properties and good heat resistance.
Specification: 1020mm*2020mm
Thickness: 0.5～30mm
Density: 1.9～2.0g/cm3
Insulation class: B
Temperature resistance: 120℃
Vertical layer bending strength: ≥340Mpa
Vertical layer direction electric strength (90±2℃ in transformer oil) 10～12KV/mm
Parallel layer breakdown voltage (90±2℃ in transformer oil)
Parameter of 3241 Semiconductor Glass Cloth Laminate:
| Specification: | 1020mm*2020mm |
| Thickness: | 0.5～30mm |
| Density: | 1.9～2.0g/cm3 |
| Insulation class: | B级 |
| Temperature resistance: | 120℃ |
| Vertical layer bending strength: | ≥340Mpa |
| Vertical layer direction electric strength (90±2℃ in transformer oil) | 10～12KV/mm |
| Parallel layer breakdown voltage (90±2℃ in transformer oil) | ≥35KV |
Application of 3241 Semiconductor Glass Cloth Laminate:

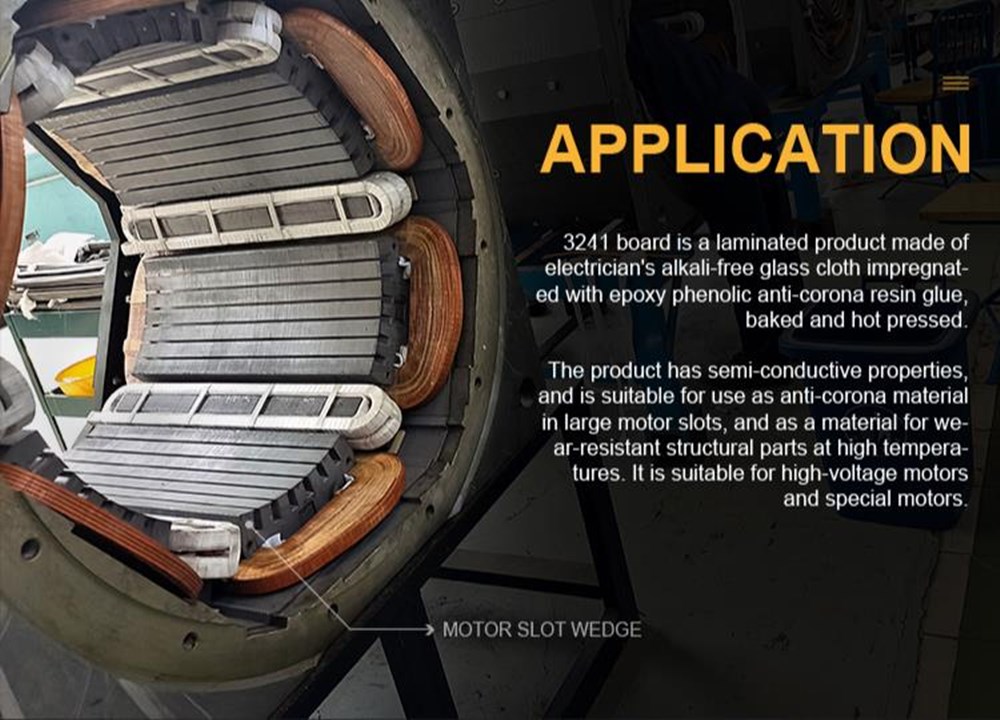

It is suitable for anti-corona materials for medium and large motor slots and can be used as materials for non-metallic structural parts at high temperatures, suitable for high-voltage motors and special motors, large explosion-proof motor, rotor stator slot wedge.
