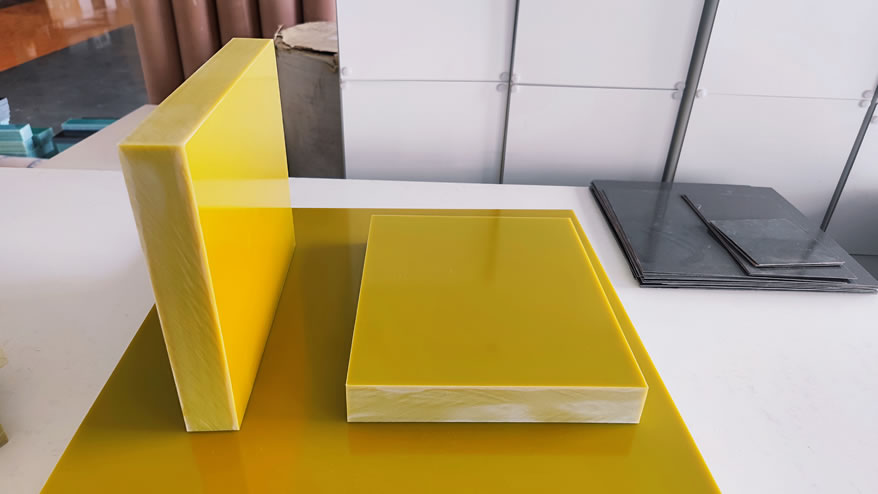

G10 Epoxy Fiberglass Laminated Sheet(EPGC 201/NEMA G-10/HGW2372/EP1) IEC：EPGC201，JIS：EL-GEH，NEMA：G10
G10 high temperature epoxy resin fiberglass board is created by compressing fiberglass cloth, soaked in high temperature resistant epoxy resin under heat with excellent mechanical and dielectric properties, good mechanical performance at high temperature and high humidity condition, and good processability.
NEMA G-10/EPGC201/HGW2372/EP1 Epoxy Fiberglass Laminated Board

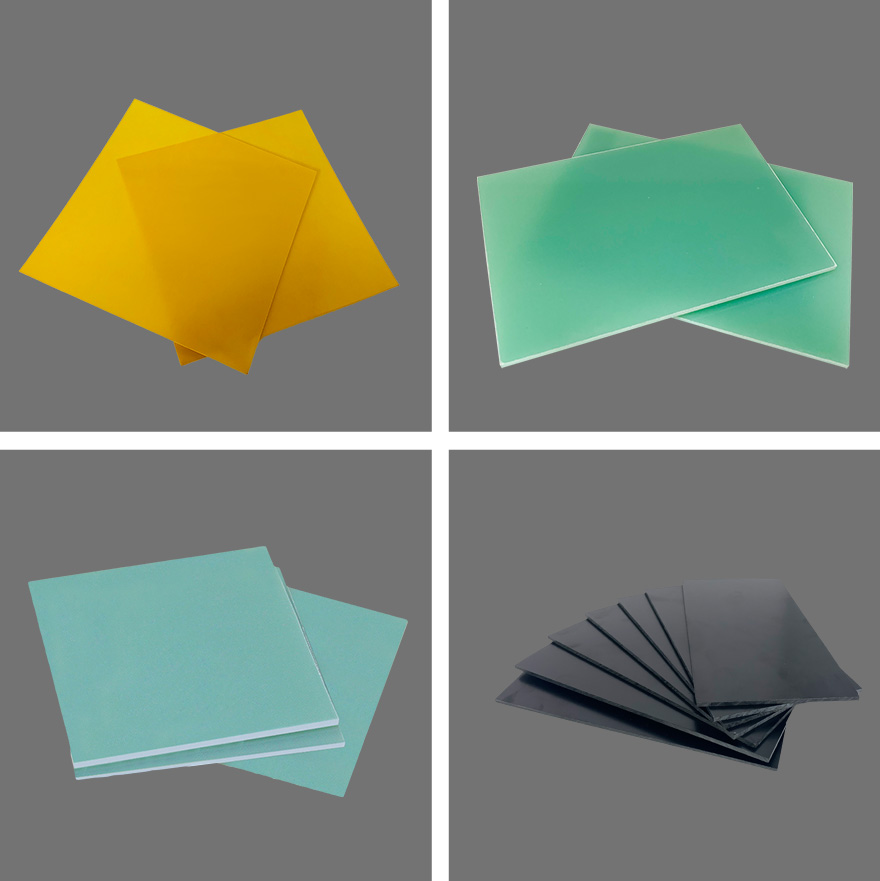

Color: Green/Water Green/White/Yellow
Thickness: 0.1-100mm
Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 mm(support customize)
■ The insulation class: class B(130°C)
■ The main color is yellow,green, black.
■ Standard:IEC60893-3:2003
G10 sheet Application：
| Slot Wedges | Machine parts | Transformer baffles |
| Terminal Boards and Tag Strips | Bolt Insulation | Electromechanical Components |
| High-Voltage Switches | FPC Reinforcing Sheets | Wiring Boards |
| Planetary Gears | Electronic Insulation Fields | Power Distribution Cabinets |

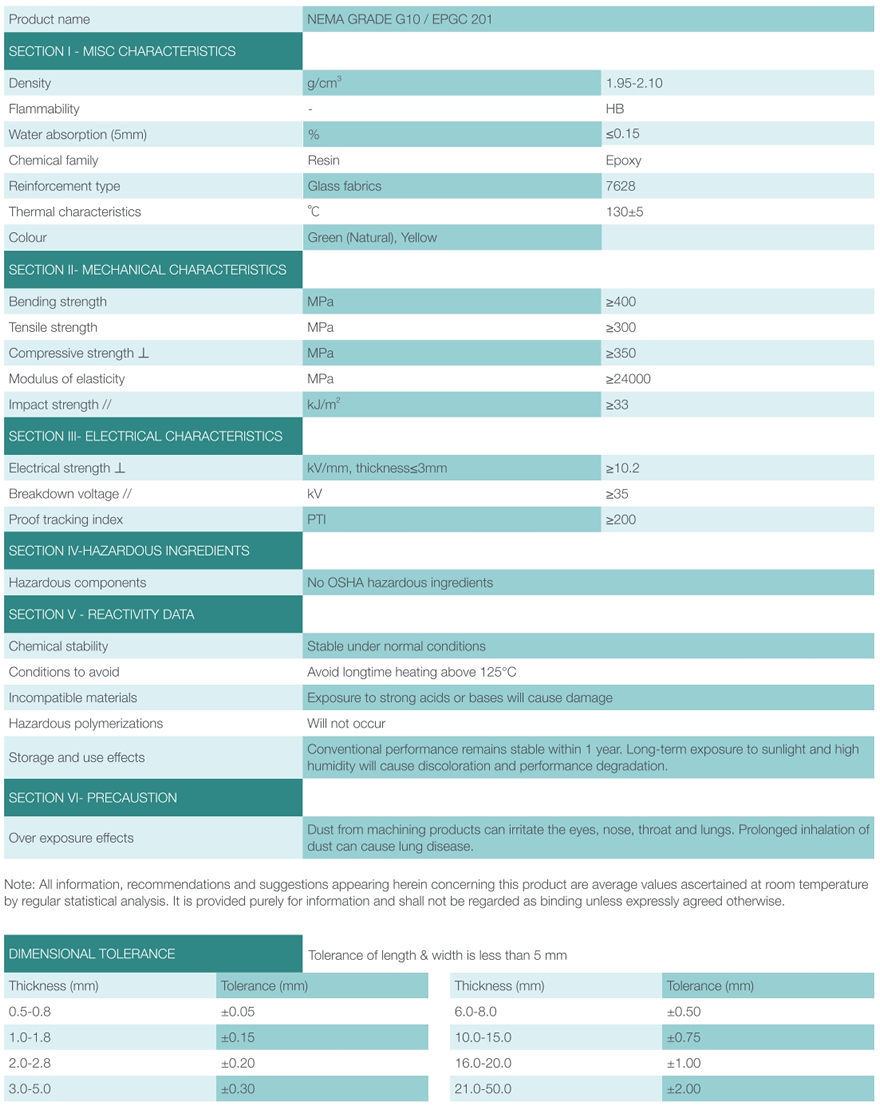

G10 Epoxy Fiberglass Sheet Parameter：

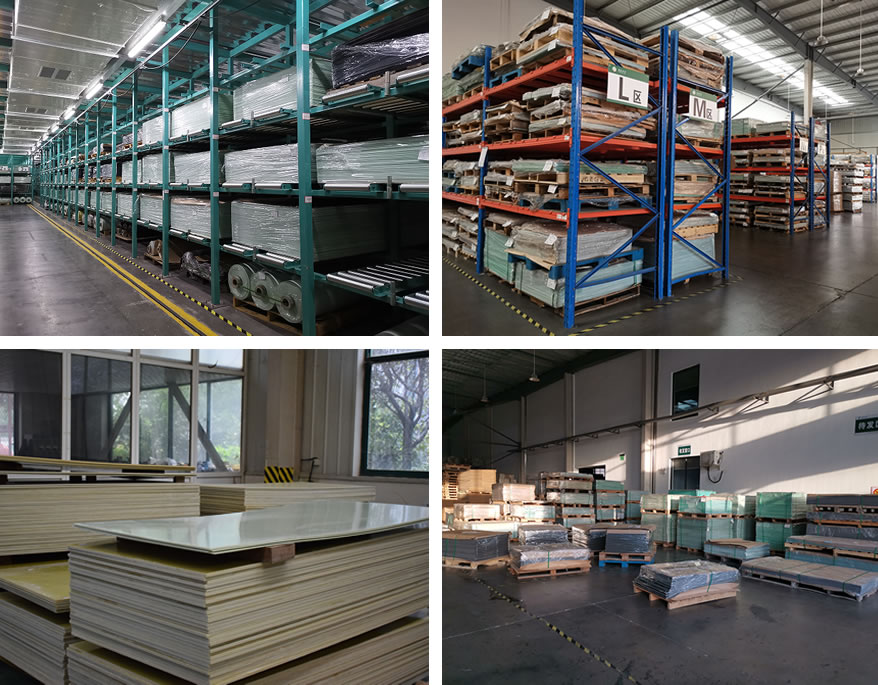

G10 Sheet Warehouse and packaging

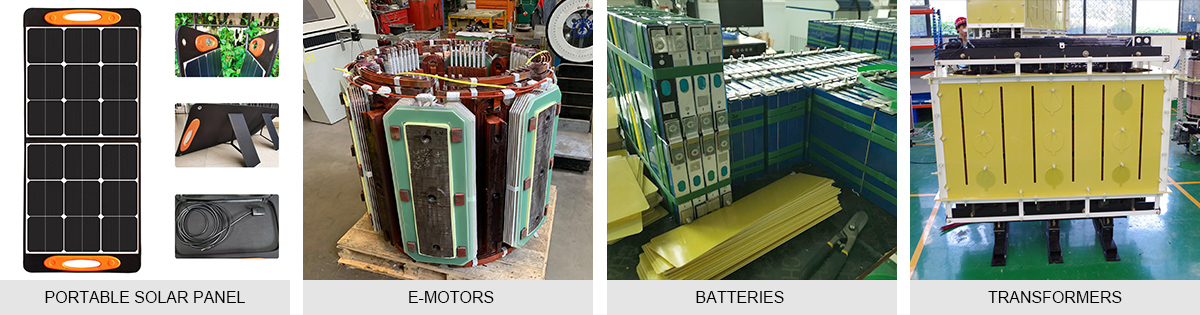

Application of Nema G10 High Temperature Epoxy Fiberglass Sheet

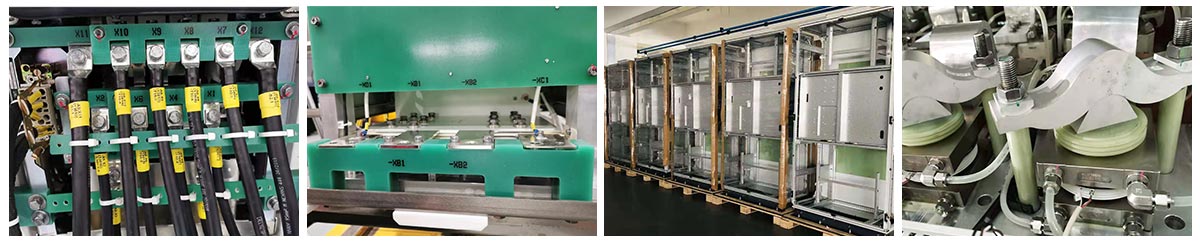

It can be used as insulating structural parts with heat resistance for electrical equipments such as circuit breakers, switchgear, transformers, DC motors, AC contactors, explosion-proof electrical appliances, electric furnace, electric melting furnace, etc.
It can also be used for making structural support parts of switch and transformer, bus clamp plate, signal plate, partitions and lining plates of various switch gears, terminal plate, interphase insulation, bottom baffle, contact support parts, movable cover, slot wedge stator, fixed gasket, thin gasket, carbon brush, etc.
FR4 Sheet VS G10 sheet
1.The color, parameter and properity is similar between g10 and fr4
2.The difference is fr4 with flame retardant properties, and the flame retardant grade is UL94-V0 grade (after 10 seconds of burning test, the flame is extinguished within 30 seconds, no burning matter falls). G10 is not.
3.FR-4 is the grade most widely in use today. G-10, the predecessor to FR-4, lacks FR-4’s self-extinguishing flammability characteristics. Hence, FR-4 has since replaced G-10 in most applications.
Our Certificates
We are steadily growing upinto aleading enterpriseof electrical equipment with an international brand in China.We are IS09001,IS014001and 0HSAS18000 certified.With 65 years’experience,a sound quality control system and the consummate after-sales service,we win a high reputation both at home and abroad.
Our Customer Cases
Why Choose XUJUE ELECTRICAL G10 Sheet?
1. Automatic Coating: Glue evenly, strictly control PP sheet move.
2. Fully automatic special equipment: Without one machine multi-purpose, which can guarantee product quality stability.
3. Quality testing: Strict factory inspection, total quality management TQM.
4. Processing Service: According to your requirements, we process and customize on time and quality.
5. UL,SGS and ROSH certificates are complete, and sample testing can be provided.
XUJUE ELECTRICAL G10 Sheet VS Other manufacture’s G10 Sheet
